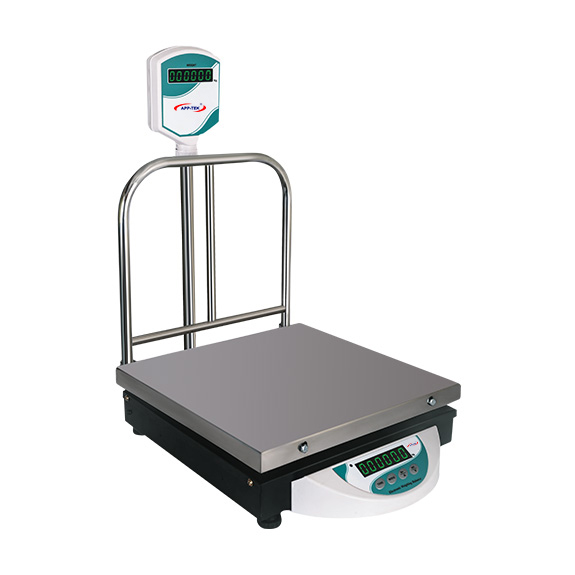

Product Name : Bench Scale SS


...
  • Soft Touch Tactile Switches
  • Quick Response Time
  • Tare Facility with Zero Function
  • LED Display
  • Metal Body
  • Easy to Operate, Compact Design
  • Over load protection
  • Weather & water proof sophisticated tactile keyboard
  • High accurate load cell
  • Approved by weight & Measurement Dept. Govt. of Gujarat
  • 12 to 15 w power consumption.
  • 230 V ± 10% 50Hz volts AC.
  • 2Operating Temperature Range 0°C to 50°C
  • Extra/Remote Display
  • Printer/Rs 232 Interface
MODEL CAPACITY E VALUE PLATFORM SIZE (mm)
Se08 50 Kg. 5 g. 350 x 350 - -
Se08 / Se09 / Se10 / Se11 50/100 Kg. 5/10 g. 350 x 350 400 x 400 500 x 500
Se09 / Se10 / Se11 100/200 Kg. 10/20 g. 400 x 400 500 x 500 600 x 600
Se09 / Se10 / Se11 100/200/300 Kg. 10/20/50 g. 400 x 400 500 x 500 600 x 600
Se09 / Se10 / Se11 500 Kg. 50 g. 600 x 600 750 x 750 -
Se11 1000 Kg. 100 g. 900 x 900 1000 x 1000 -
Se11 1000/2000 Kg. 100/200 g. 1200 x 1200 1500 x 1500 -
