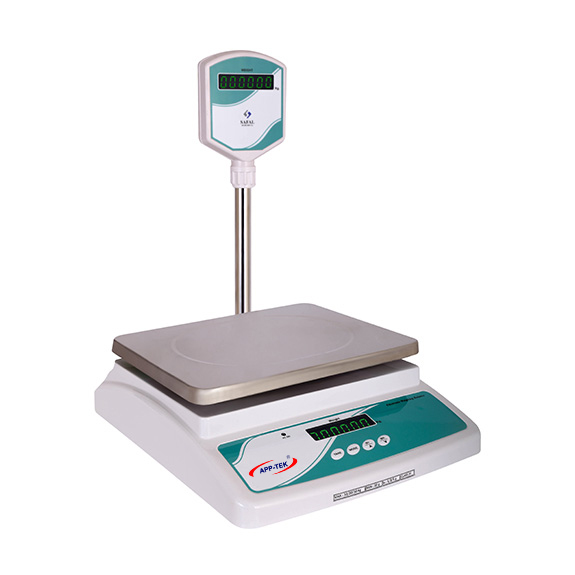

Product Name : Table Top Scale - Se02
Specifications
- Soft Touch Tactile Switches
- Quick Response Time
- Tare Facility with Zero Function
- LED Display
- Top ABS and Bottom Metal Body
- Easy to Operate, Compact Design
Technical Features
- Over load protection
- Weather & water proof sophisticated tactile keyboard
- High accurate load cell
- Approved by weight & Measurement Dept. Govt. of Gujarat
- 12 to 15 w power consumption.
- 230 V ± 10% 50Hz volts AC.
- 2Operating Temperature Range 0°C to 50°C
Options
- Extra/Remote Display
- Printer/Rs 232 Interface
Model Details
| MODEL |
CAPACITY |
E VALUE |
PLATFORM SIZE (mm) |
| Se01 / SE05 |
1 Kg. |
0/100 mg. |
175 x 225 |
170 x 210 |
- |
| Se01 / SE05 |
2 Kg. |
100/200 mg. |
175 x 225 |
170 x 210 |
- |
| Se01 / SE05 |
5 Kg. |
0.500 mg. |
175 x 225 |
170 x 210 |
240 x 300 |
| Se01 / SE05 |
10 Kg. |
0.5/1 g. |
175 x 225 |
170 x 210 |
240 x 300 |
| Se01 to Se07 |
20 Kg. |
1/2 g. |
175 x 225 |
170 x 210 |
240 x 300 |
| Se02 to Se04 & Se06 & 07 |
30 Kg. |
1/2/5 g. |
- |
240 x 300 |
250 x 300 |
| Se02 to Se04 & Se06 & 07 |
40 Kg. |
2 |
- |
240 x 300 |
250 x 300 |
