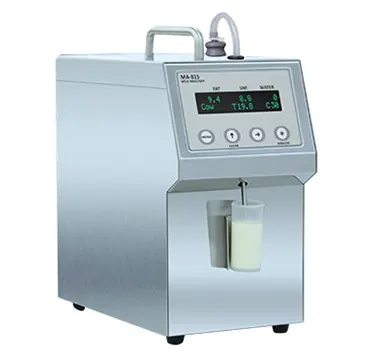

Product Name : Milk Analyser
Specifications
- Measuring Time - 23 sec @ 30 C Milk temperature
- Milk Acidity - < 25° T
- Milk Temperature - 10 to 40° C
- Milk Sample Volume - 25 ml
- Display - 20 x 2 LCD display with Green Backlight
- Keyboard - 4 keys
- AC Power - 160 - 270 V / 50 Hz AC 1.6 A max
- DC Power - 12 V - 14.2 V DC
- Power Consumption - 40 W max
- DC Cable - DIN connector with cable length of 1.8 meter
- Ambient Air Temperature - 10 to 45° C
- Relative Humidity - 30 to 80 %
- Interface - 1 x RS-232 Serial with Cable
- Physical Dimensions - MA-825 : 138 (W) x 265 (D) x 276 (H) mm & MA-825SS : 138 (W) x 251 (D) x 275 (H) mm
- Weight - MA-825 : 3.2 kg & MA-825SS : 3.4 kg
- Cleaning - Manual & Auto
Salient Value
- Dual Ultrasonic Sensor for faster measurement and high precision for high fat milk
- Industrial Design in Germany for elegant styling & aesthetics
- User friendly manual cleaning for superior performance
- Selectable DATA format for easy interface with any DPU & Dairy software
- Memory: Cleaning, Correction & Calibration records with time stamp
Technical Specifications
| Parameter |
Range |
Resolution |
Accuracy |
| Fat |
0 to 15 % |
0.1 % |
+/- 0.1 % |
| SNF |
3 to 15 % |
0.1 % |
+/- 0.2 % |
| Added Water |
0 to 100 % |
1 % |
+/- 3 % |
| CLR |
20 to 40 |
0.5 |
+/- 1 |
| Lactose |
1 to 8 % |
0.1 % |
0.1 % |
| Protein |
1 to 6 % |
0.1 % |
+/- 0.2 % |
| Salt |
0.2 to 1.5 % |
0.1 % |
+/- 0.2 % |
